• Introduction
Based on the new Intel P45 chipset, GA-EP45-DS3L delivers a record setting 1600MHz Front Side Bus for the latest Intel® Core 2™ multi-core processors, including 45nm CPUs and supporting dual channel DDR2 up to 1333+MHz. GA-EP45-DS3L features PCI Express 2.0 x16 interfaces, delivering double the PCI Express bandwidth of 5 Gbit/s for the ultimate in extreme gaming performance. GA-EP45-DS3L delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable design which provide optimized power savings, ultra cooling and ultra durability.
• Smaller, Faster and More Efficient
GA-EP45-DS3L motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors.
• Dual Channel DDR2 1333+
Experience the advanced technology of DDR2 1333+ memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications. * Please refer "Memory Support List" for memory support information
• PCI-E 2.0 Graphic Interface
PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIe 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
• Intel® High Definition Audio
Intel® High Definition Audio enables 8 channel premium digital sound in the PC for an immersive surround sound experience. In addition, Intel HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two separate rooms
• Dynamic Energy Saver Advanced
GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world's only motherboard energy saving technology with hardware-based Dynamic 4-Gear* Switching. With support for VRD 11.1, GIGABYTE's DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.
GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
• The Industry's Leading All-Solid Capacitor motherboard Design
To ensure a longer for systems in daily operation and boost system stability under extreme conditions, this platform adopts cutting-edge Conductive Polymer Aluminum Solid Capacitors from the world's leading vendors. With these high-quality components, users can take advantage of better electronic conductivity and excellent heat resistance for enhanced system durability.
• 50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.
• Gigabit LAN connectivity
The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents
Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings.
• Hardware Overvoltage Control ICs (Designed for CPU only)
Hardware Overvoltage Control ICs which provide more voltage control options than before for the CPU. The overvoltage controllers also provide hardware linear real-time voltage control. In addition, Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
• EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system
• DualBIOS™ - Patented Dual Hardware BIOS Protection
DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
|
| tip procesor | • Intel Core 2 Quad Q9550
▫ Frequence : 2830 MHz
▫ Socket : S775
▫ FSB : 1333 MHz
▫ Cache Level 2 : 12MB
▫ Technology : 45 nm
▫ Operation : 64 biti
|
| tehnologii multimedia | • Audio
▫ Realtek ALC888 codec
▫ High Definition Audio
▫ 2/4/5.1/7.1-channel
▫ Support for S/PDIF In/Out
▫ Support for CD In
|
| placa de baza | • Motherboard: GA-EP45-DS3L
• CPU support for:
▫ Intel® Core™ 2 Extreme processor
▫ Intel® Core™ 2 Quad processor
▫ Intel® Core™ 2 Duo processor
▫ Intel® Celeron® processor in the LGA 775 package
▫ L2 cache varies with CPU
(Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
• Front Side Bus
▫ 1600/1333/1066/800 MHz FSB
• Chipset
▫ North Bridge: Intel® P45 Express Chipset
▫ South Bridge: Intel® ICH10
• Memory
▫ Dual channel memory architecture
▫ DDR2 1333+/1066/800/667 MHz memory modules
▫ 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB
• LAN
▫ Realtek 8111C chips (10/100/1000 Mbit)
• Expansion Slots
▫ 1 x PCI Express x 16 slot conform to PCI Express 2.0 standard.
▫ 4 x PCI Express x1 slot
▫ 2 x PCI slots
• Storage Interface
▫ South Bridge: 6 x SATA connectors supporting up to 6 SATA 3Gb/s devices
▫ JMicron 368 chip: 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
▫ iTE IT8718 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive
• USB - (Integrated in the South Bridge)
▫ 12 x USB 2.0 / 1.1 ports:
▫ R 8 on the back panel
▫ R 4 via the USB brackets connected to the internal USB headers)
• Internal I/O Connectors
▫ 1 x 24-pin ATX main power connector
▫ 1 x 4-pin ATX 12V power connector
▫ 1 x floppy disk drive connector
▫ 1 x IDE connector
▫ 6 x SATA 3Gb/s connectors
▫ 1 x CPU fan header
▫ 2 x system fan headers
▫ 1 x power fan header
▫ 1 x front panel header
▫ 1 x front panel audio header
▫ 1 x CD In connector
▫ 1 x S/PDIF In header
▫ 1 x S/PDIF Out header
▫ 2 x USB 2.0/1.1 headers
▫ 1 x parallel port header
▫ 1 x serial port header
▫ 1 x power LED header
▫ 1 x chassis intrusion header
• Back Panel Connectors
▫ 1 x PS/2 keyboard port
▫ 1 x PS/2 keyboard/mouse port
▫ 1 x optical S/PDIF Out connector
▫ 1 x coaxial S/PDIF Out connector
▫ 8 x USB 2.0/1.1 ports
▫ 1 x RJ-45 ports
▫ 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
• I/O Controller
▫ iTE IT8718 chip
• H/W Monitoring
▫ System voltage detection
▫ CPU/System temperature detection
▫ CPU/System/Power fan speed detection
▫ CPU overheating warning
▫ CPU/System/Power fan fail warning
▫ CPU/System fan speed control
• BIOS
▫ 2 x 8 Mbit flash
▫ Use of licensed AWARD BIOS
▫ Support for DualBIOS™
▫ PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
• Unique Features
▫ Support for @BIOS
▫ Support for Q-Flash
▫ Support for Download Center
▫ Support for Xpress Install
▫ Support for Xpress Recovery2
▫ Support for EasyTune
▫ Support for Dynamic Energy Saver Advanced
▫ Support for Time Repair
▫ Support for Q-Share
• Bundle Software
▫ Norton Internet Security (OEM version)
• Operating System
▫ Support for Microsoft/ Windows/ Vista/XP
• Form Factor
▫ ATX Form Factor; 30.5cm x 21.0cm
|
| memorie standard | • Memory 8GB dual Kit2 RAM
▫ Dual channel architecture;
▫ DDR II 2 x 4GB, CL7, 1066 MHz, Kingston HyperX |
| capacitate maxima memorie | 16 GB |
| HDD intern | • SEAGATE hard disk drive 500GB
▫ Serial ATA 2
▫ 16MB buffer
▫ 7200 rpm |
| adaptor video | • ATI Radeon HD 4650 - Avivo HD Technology, PCI Express 2.0
▫ GPU/VPU: RADEON HD 4650
▫ RAMDAC: Dual 400 MHz
▫ Video Memory: 512MB DDR3
▫ Memory Interface: 128-bit
▫ Core Clock: 600 MHz
▫ Memory Clock: 1000 MHz
▫ Interface Speed: x16
|

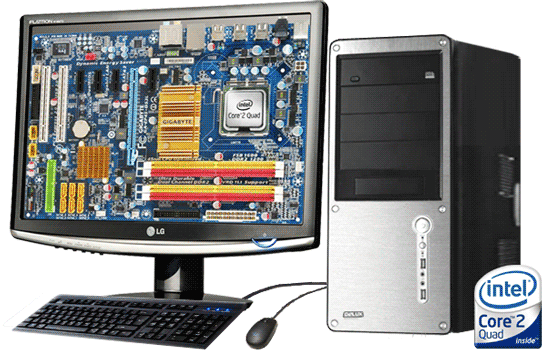

| model ecran (monitor) | • LG 22inch W2252S-BF
▫ Digital Visual Interface (DVI)
|
| diagonala ecran/vizibil (cm.) | 22 inch Wide (55cm) |
| contrast imagine | 10000:1 DFC (Original 700:1) |
| tip tehnologie ecran | LCD |
| tehnologie imagine | DFC - Technology for Superb Viewing Experience |
| tip ecran | wide screen (16 x 9) |
| viteza de raspuns | 2ms (Typical) |
| rezolutie ecran | 1680 x 1050 |
| marime punct | 0.282 x 0.282 |
| unghi vizibilitate h/v | H : 170°/V : 170°(CR≥5) |
| frecventa orizontala | 30~83Khz |
| frecventa verticala | 56~75Hz |
| numar culori afisabile | 16.700.000 |
| stralucire | 300cd/㎡ |
| FDD | • SONY floppy disk drive 3.5" |
| cd-rom/dvd | • LG DVD±RW-GH22NS40
SATA interface
Super multi 22x
|
| interfata retea | • Realtek 8111C 10/100/1000 Mbit |
| modem | optional |
| porturi externe i/o | ▫ 1 x PS/2 keyboard port
▫ 1 x PS/2 mouse port
▫ 1 x parallel port
▫ 1 x serial port
▫ 1 x D-Sub port
▫ 4 x USB 2.0/1.1 ports
▫ 1 x RJ-45 port
▫ 3 x audio jacks (Line In/Line Out/Microphone)
|
| mouse/dispozitive de indicare | • LG Mouse optic scroll 3D 510
▫ PS/2 |
| tastatura | • LG Keyboard ST220
▫ PS/2 |
| tip carcasa | • Middletower case ATX MF-483
▫ Power: 450W
▫ CD/DVD: 4 bays
▫ HDD slot: 1+1
▫ FDD slot: 1
▫ Frontal Audio port: 1
▫ Frontal microfon: 1
▫ Frontal USB: 1
▫ Intel TAC air |
| compatibilitate cu sisteme de operare | - Microsoft Windows Vista
- Microsoft Windows XP Professional
|
| reteaua de alimentare | 100/240 Va.c. ± 10%, 50/60 Hz ± 3% |
| energy star | yes |
| consum | ▫ Processor case: max. 390W
▫ Display: max. 40W |
| dimensiuni (w x d x h) | ▫ Processor case: 450 x 192 x 4445mm
▫ Display: 520 x 220 x 430mm |
| greutate | ▫ Processor case: 5,4Kg
▫ Display: 4,7Kg |
| garantie | 36 luni |
